# Pre-Deployment

The following steps should be performed after deploying the infrastructure.

• Pre-Deployment
  • Airbyte
    • Mongo Source Connector
    • GitLab Source Connector
  • Build Custom Connectors

# Airbyte

Note that this section refers to the Detections account associated with the kingslanding domain.

# Mongo Source Connector

1. Log into Airbyte (rookery.kingslanding.net)

2. In the left column, select Sources.

   If there are already sources, you may need to select the New Source button. If there is already a mongo-legacy source, then skip to the next section.

3. Under Set up a new source, select the Custom tab.

# GitLab Source Connector

1. Log into Airbyte (rookery.kingslanding.net)
2. In the left column, select Sources. If there are already sources, select the New Source button.

3. Under Set up a new source, select the Custom tab.

   If gitlab-internal and mongo-legacy are not available, go to Build Custom Connectors before performing these steps.

4. Select gitlab-internal

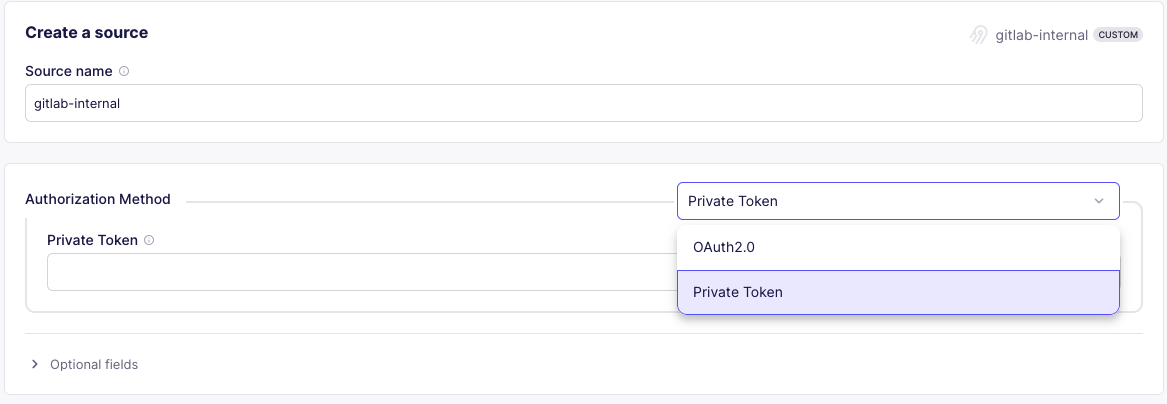

5. Under Authorization Method, click the drop-down menu that defaults to OAuth2.0, and select Private Token

6. Set the Private Token field to the glpat token.



7. Expand the Optional Fields in light gray at the bottom and ensure these are properly set:

   Start Date: <leave blank>

   API URL: gitlab.kingslanding.net

   Groups: systems

   Projects: <leave blank>

8. Select Test the source and validate the connection tests are successful.
9. Select the S3 destination. If that has not already been configured, see the Set Up S3 Destination section

# Build Custom Connectors

# Stage GitLab connector (docker)

1. Create certificates for rookery, move cert and key to /opt/registry/certs

2. Launch docker registry using that certificate and key

   mkdir /opt/registry/certs
   sudo mv rookery.crt /opt/registry/certs/
   sudo mv rookery.key /opt/registry/certs/
   mcd /opt/registry/
   docker run -d \
       --restart=always \
       --name registry \
       -v "$(pwd)"/certs:/certs \
       -e REGISTRY_HTTP_ADDR=0.0.0.0:443 \
       -e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/rookery.crt \
       -e REGISTRY_HTTP_TLS_KEY=/certs/rookery.key \
       -p 443:443 \
       registry:latest

3. Load root certs into airbyte host. There is a playbook for this, but can be done manually using the following commands.

4. Then restart docker service so it uses new cert store.

   cp <root cert> /user/local/share/ca-certificates/
   update-ca-certificates
   sudo systemctl restart docker

5. Load and push docker image

   docker image load -i source-gitlab.9.tgz
   docker image push rookery.kingslanding.net/source-gitlab:9

6. Add root cert to abctl docker container

   docker exec -it airbyte-abctl-control-plane /bin/bash
   echo <root cert> > /user/local/share/ca-certificates/root-ca
   update-ca-certificates

# Add the connector (docker)

1. Log in to Airbyte
2. Select Settings > Sources

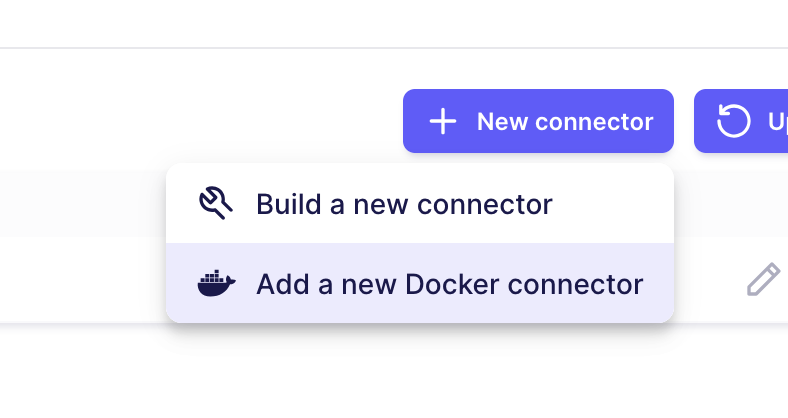

3. Select + New connector and Add a new Docker connector

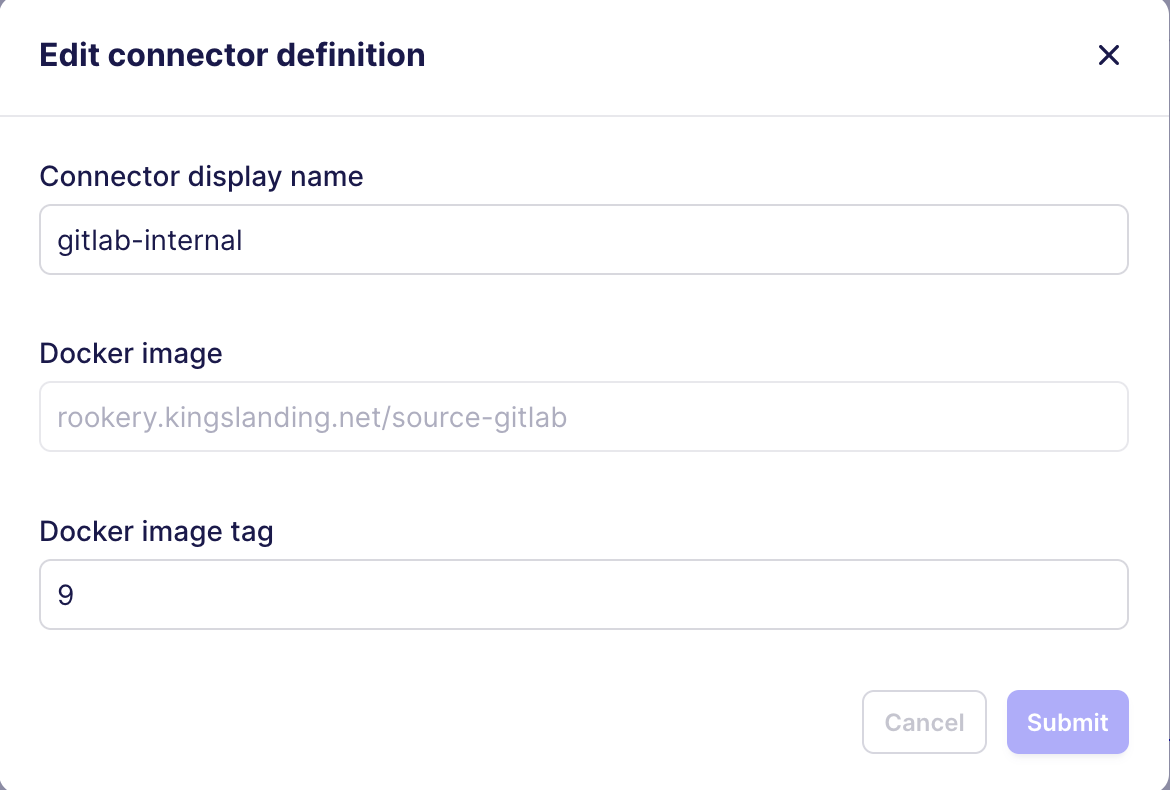

4. Name the new connector gitlab-internal
5. Specify Docker image: rookery.kingslanding.net/source-gitlab
6. Specify tag to match image pushed — current version is 9
