# Post-Deployment

After configuring the Enterprise 2025 infrastructure, the following manual steps are required.

• Post-Deployment
  • Authentik Setup
    • Procedure
  • Airbyte Setup
    • Procedure
      • Setup Connectors
      • Setup Connections
        • Gitlab-to-S3 Connection
        • Wekan-to-S3 Connection

# Authentik Setup

Authentik requires manual actions to complete setup. The procedure in this section must be done twice, once each for:

1. Detections on kingslanding.net
2. Protections on vale.net

# Procedure

Please use the following admin credentials for the Authentik SSO service:

1. Open a web browser to the Authentik SSO URL, logon with the akadmin admin credentials, then select the Admin interface (top right corner).

2. Navigate to Applications > Providers



   If Provider for AWS is missing, please either rerun the update-authentik-postdeploy.yml or the deploy2 Make target that contains this playbook.

3. Click into Provider for AWS
4. Under Metadata, select Download
5. Logon to the AWS account of the domain being configured (Detections for Kingslanding, Protections for Vale)
6. Navigate to IAM > Access Management > Identity Providers
7. Select Add Provider
8. Name this provider authentik
   1. If this is named anything other than authentik, this configuration will not work.
9. Under Metadata document, select Choose File
10. Upload the Metadata file downloaded from the Authentik SSO dashboard (Step 4), then select Add provider.

# Airbyte Setup

The S3 destination is a per-range configuration that must be added post-deployment.

Note that this section refers to the Detections account associated with the kingslanding domain.

# Procedure

# Setup Connectors

1. Open a web browser, navigate to the Airbyte URL, and logon with the local admin credentials above.
2. On the left menu, select Destinations
3. Choose S3
4. Open a new tab to logon to the Detections AWS account

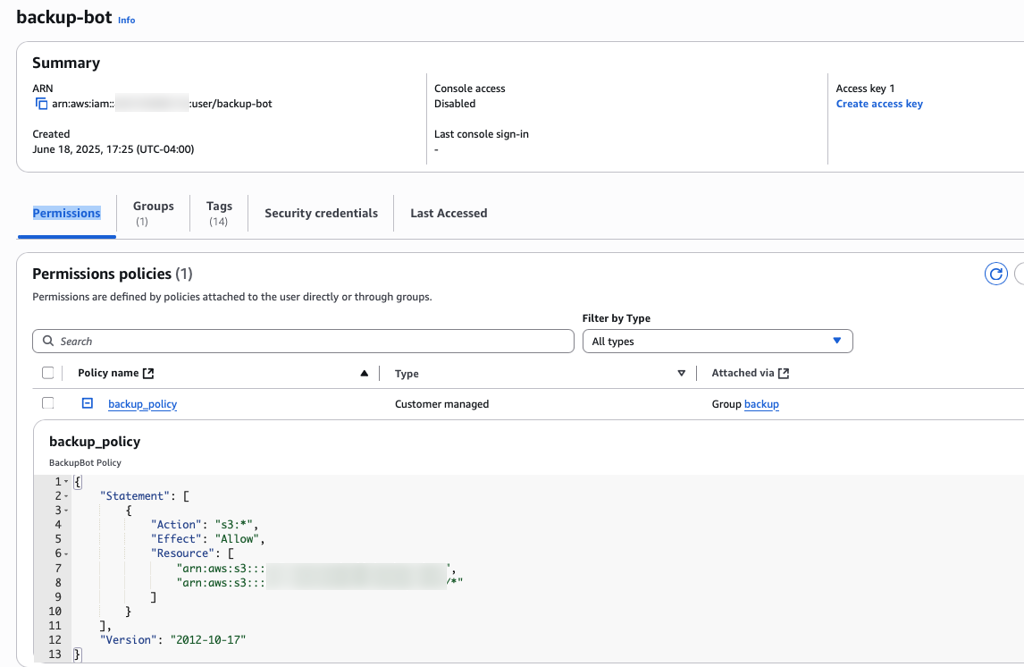

5. Navigate to IAM > Access Management > Users

6. Select the backup-bot user.



   The backup-bot user and the correct permissions are created with Terraform. If they do not exist, check the Terraform state for this range. Do not manually change, delete, or create the backup-bot user or permissions.

7. Click Create access key
8. Select Other from the list of use cases and hit Next
9. Type airbyte into the Description tag value and select Create access key
10. Copy the Access Key ID, return to the Airbyte tab, and paste this in the Access Key ID field.
11. Copy the Secret Access Key, return to the Airbyte tab, and paste this in the Secret Access Key field.

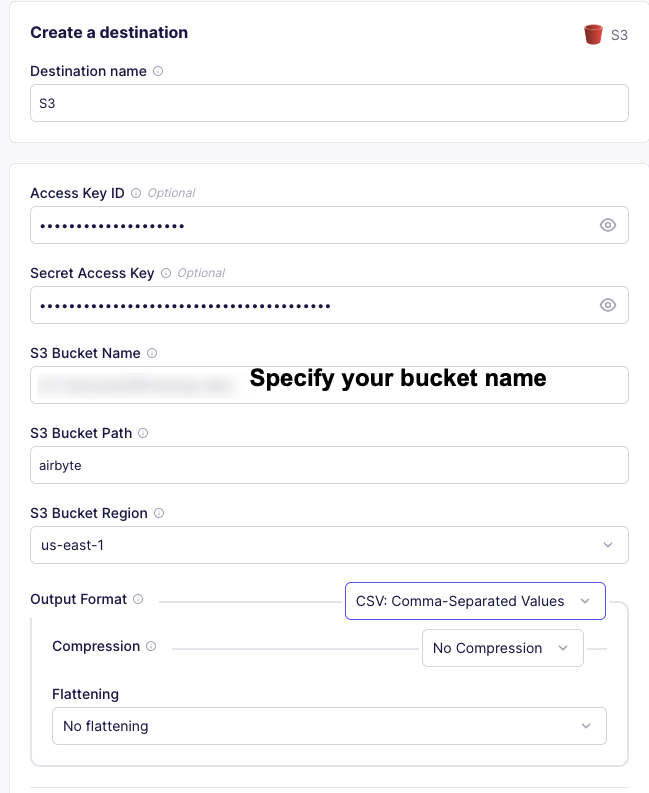

12. Please validate and set the remaining fields using the table below:

    Airbyte Setting	Value	Notes
    Access Key ID	backup-bot Access Key ID	Access Key ID generated in steps 7-9.
    Secret Access Key	backup-bot Secret Access Key	Secret Access Key generated in steps 7-9.
    S3 Bucket Name	er7-enterpriseround7-backup-data	This bucket was created by Terraform and matches the access policies. Do not create a new bucket. Validate by viewing existing S3 buckets.
    S3 Bucket Path	airbyte	Name must match exactly.
    S3 Bucket Region	us-east-1	Default region.

13. Select Set up destination. If tests do not pass, validate the bucket name and keys.

# Create Custom Sources

Setup custom source connectors for Airbyte to use for connections to GitLab and Wekan.

# Wekan Source

By default, Wekan only supports using MongoDB deployments in a clustered, replica set configuration. Wekan requires a specific version of the MongoDB source connector to pull data from a non-clustered database (single instance, no replica set).

1. Open a web browser, navigate to the Airbyte URL, and logon with the local admin credentials above.
2. Settings → Sources.
3. Select New Connector → Add a new Docker connector.

4. Set the new connector fields using the table below:

   Setting	Value	Notes
   Connector display name	mongo-legacy	Name of new source connector
   Docker repository name	airbyte/source-mongodb	Image
   Docker image tag	0.3.3	This version allows connections to non-clustered databases
   Connector documentation URL	< leave blank >	Blank

5. Select Add.

6. Set the new source fields using the table below:

   Setting	Value	Notes
   Host	wekan.kingslanding.net	Wekan hostname
   Port	27017	Default
   Database name	wekan	Database to replicate
   User	airbytebackup
   Password	Snowfall-Stoplight
   Authentication source	wekan

7. Select Test the source and validate the connection tests are successful.

Note: These values are set in the vars in wekan.yml If validation fails, check the values and retry.

# Gitlab Source Container

The Gitlab source connector container does not support custom certificates. To use a custom certificate (such as self-signed), the Gitlab source connector container must be modified to include and trust the certificate authority used on the evaluation range.

1. SSH to the Airbyte host. Open two separate terminal windows.
2. In one terminal, launch a copy of the official Airbyte gitlab-source container docker run --name testgitlab --rm --entrypoint="" -it -u root airbyte/source-gitlab /bin/bash
3. In a second terminal, load the range root certificate into the container. docker cp /usr/local/share/ca-certificates/COUNCILCA.crt $(docker ps --filter "name=testgitlab" --format "{{.ID}}"):/usr/local/share/ca-certificates/
4. In the container (first terminal), run update-ca-certificates
5. In the container (first terminal), add the cert to the python certifi store cat /usr/local/share/ca-certificates/COUNCILCA.crt >> /usr/local/lib/python3.11/site-packages/certifi/cacert.pem
6. On the host (second terminal), save updated image docker commit $(docker ps --filter "name=testgitlab" --format "{{.ID}}") rookery.kingslanding.net/source-gitlab:1
7. On the host (second terminal), push the updated image to the internal registry. docker push rookery.kingslanding.net/source-gitlab:1

# Gitlab Source Connector

To build a custom source from the updated gitlab container:

1. Open a web browser, navigate to the Airbyte URL, and logon with the local admin credentials above.
2. Settings → Sources.
3. Select New Connector → Add a new Docker connector.

4. Set the new connector fields using the table below:

   Setting	Value	Notes
   Connector display name	gitlab-internal	Name of new source connector
   Docker repository name	rookery.kingslanding.net/source-gitlab	Image
   Docker image tag	1	Match this to the tag on created gitlab source container
   Connector documentation URL	< leave blank >	Blank

5. Select Add.

6. Set the new source fields using the table below:

   Setting	Value	Notes
   Authentication Method	Private Token	This is a drop-down selection that will expose the private token field
   Private Token	<glpat token from gitlab>
   API URL	gitlab.kingslanding.net	Under Optional Fields
   Groups	systems	Under Optional Fields

7. Select Test the source and validate the connection tests are successful.

# Setup Connections

Setup sync tasks for GitLab and Wekan → S3 using Airbyte.

# Gitlab-to-S3 Connection

1. Connections → New Connection.
2. Select gitlab-internal source.
3. Select S3 destination.
4. Wait for schema fetch.

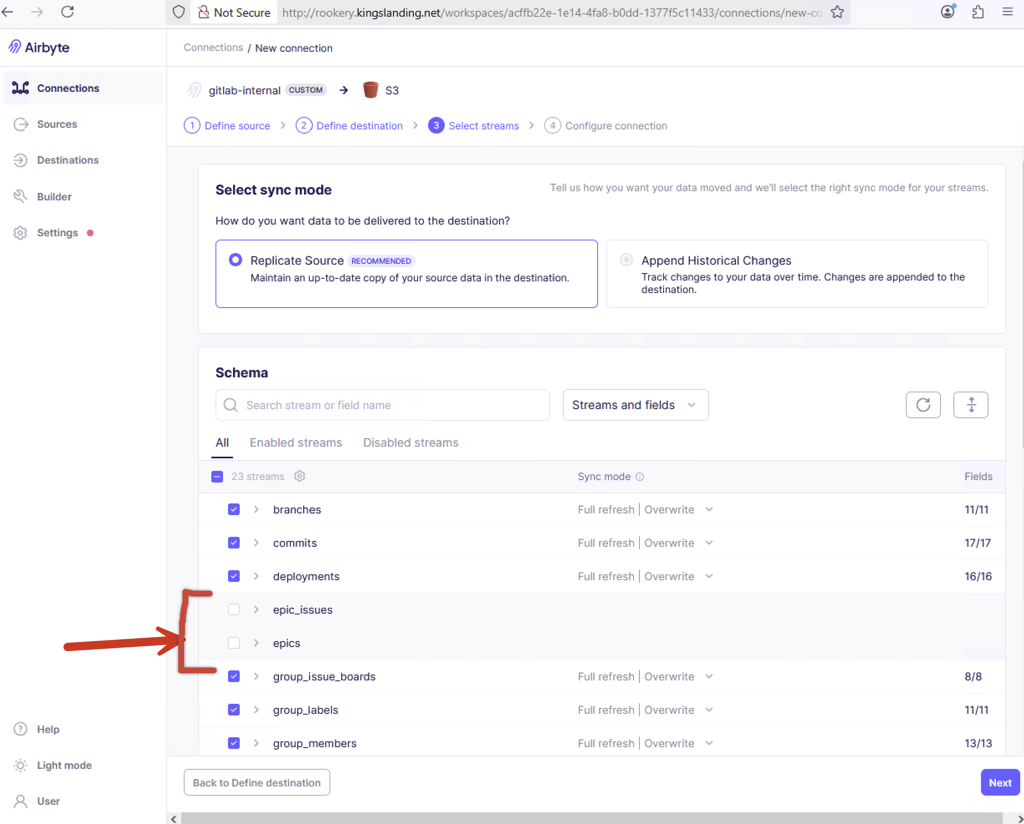

5. Select all except for Epics.

   1. Deselect epics
   2. Deselect epic_issues



6. Click Next.
7. Click “Finish and Sync”. Defaults are fine.

# Wekan-to-S3 Connection

1. Connections → New Connection.
2. Select mongo-legacy source.
3. Select S3 destination.
4. Wait for schema fetch.
5. Select all.
6. Click Next.
7. Click “Finish and Sync”. Defaults are fine.
